How to Remove and Install a Pontiac Fiero Gauge Cluster

Posted by Support Staff on 16th May 2017

How to Remove and Install a Pontiac Fiero Gauge Cluster

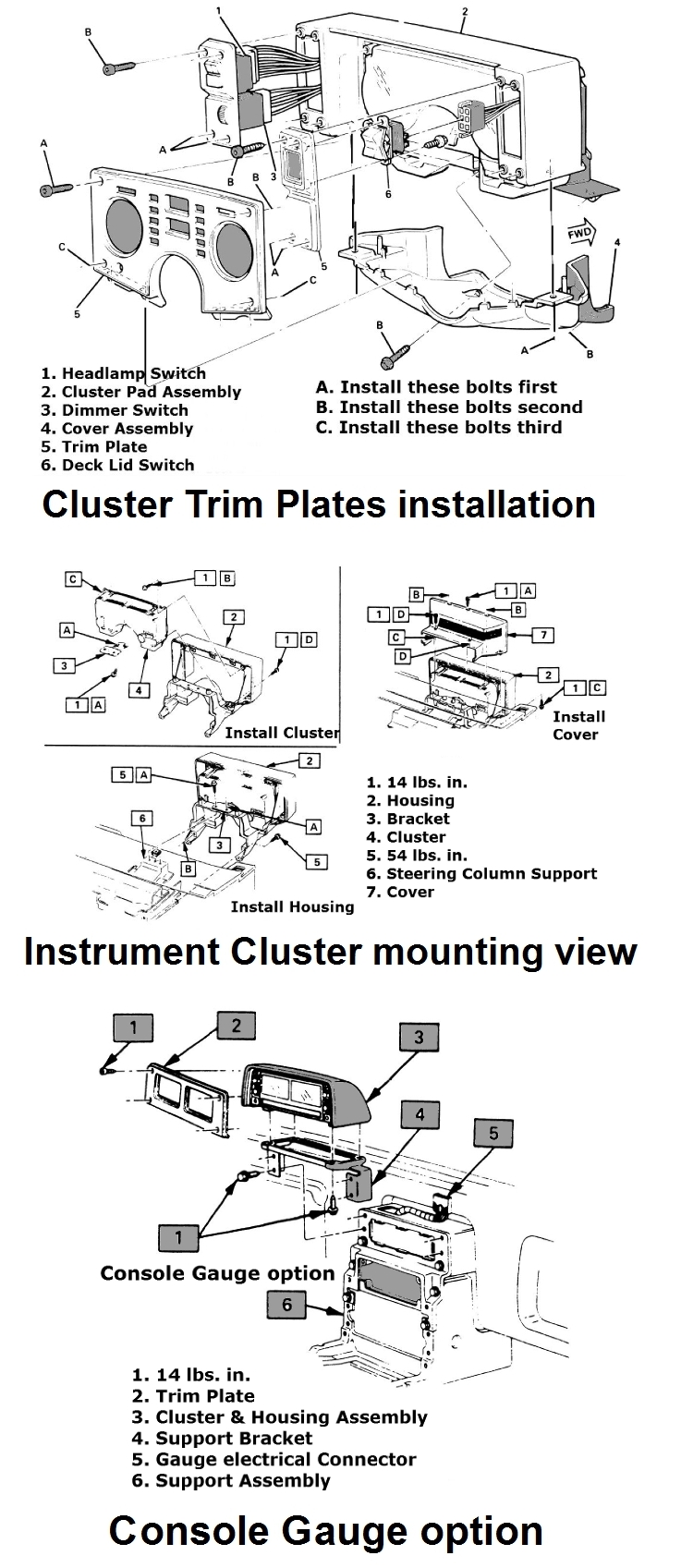

To uninstall:

  1. Disconnect the negative (-) battery cable.
  2. Remove the rear cluster cover.
  3. Remove the front trim plate.
  4. Remove the steering column cover.
  5. Remove the cluster attaching screws, disconnect the wiring harness, and remove the cluster assembly.

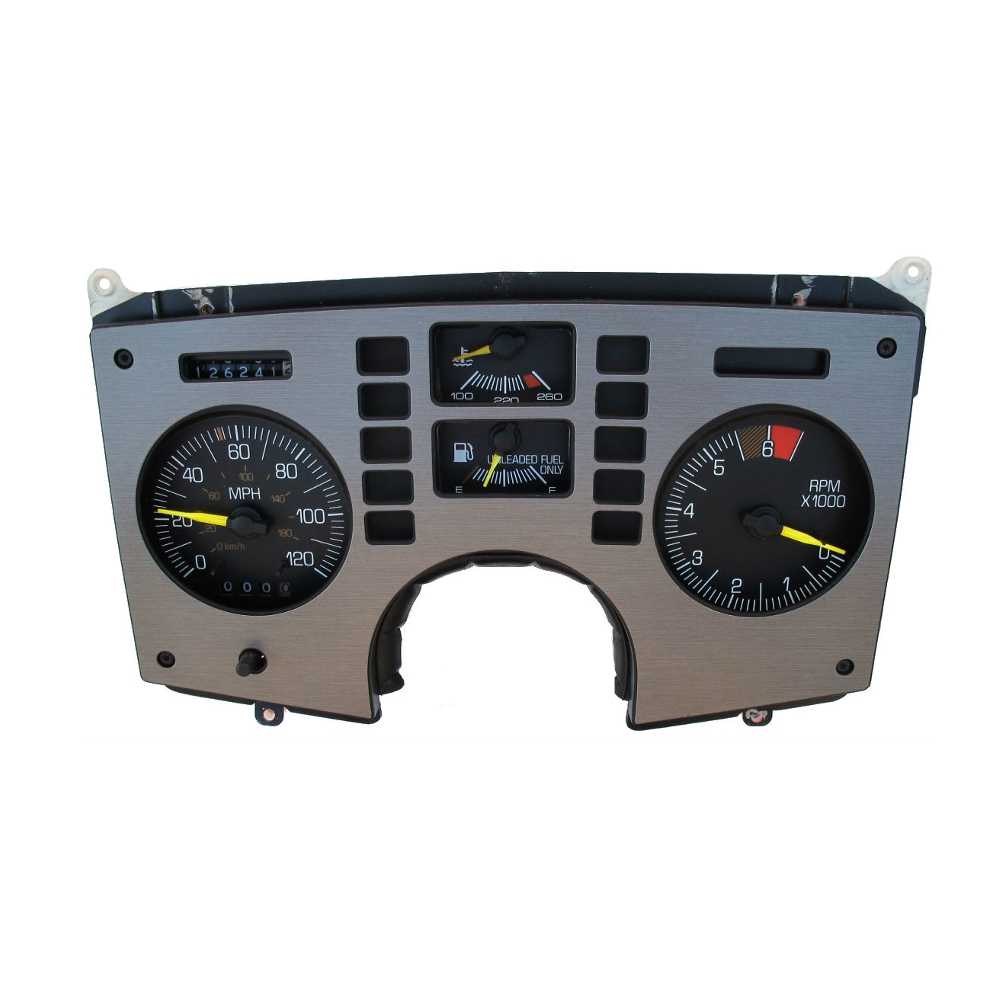

The Speedometer, Tachometer and center Gauge may be serviced by removing the front cluster lens and metal trim plate.

To install:

  1. Reconnect the wiring harnesses.
  2. Install the cluster into the housing and tighten the attaching screws.
  3. Install rear cluster cover, front trim plate and steering column cover.
  4. Reconnect the negative (-) battery cable.
  5. Turn the ignition to the ON position and check for proper gauge operation.
