Pontiac Fiero Speedometer Wiring and Troubleshooting Guide

The speedometer system in the Pontiac Fiero uses a combination of electronic components and wiring to accurately display vehicle speed. Understanding these components and common failure points can help diagnose and resolve speedometer-related issues.

Speedometer Wiring Overview

The Fiero speedometer relies on three primary electrical connections:

1. Ground (GND)

   • Common Wire Colors: Black or Dark Green

   • Function: Connects the speedometer to the vehicle’s chassis ground.

2. VCC (12V Power)

   • Common Wire Colors: Pink or Orange

   • Function: Provides switched 12V power to the speedometer.

3. Speed Signal (from Vehicle Speed Sensor - VSS)

   • Common Wire Colors: Yellow and Purple/White

   • Function: Carries the AC signal generated by the VSS to the speedometer buffer. The VSS is a magnetic PM (permanent magnet) generator that outputs an AC voltage proportional to vehicle speed.

Speedometer System Components

The system consists of the following components that work together to process and display vehicle speed:

1. PM Generator (Permanent Magnet Generator) / VSS

   • A two-wire AC signal generator mounted on the transmission.

   • Driven by a pinion gear, it produces a sine wave signal as the vehicle moves.

2. Buffer Amplifier

   • Converts the variable AC signal from the VSS into a square wave digital signal.

   • In early Fieros (1984–1986), the buffer is a standalone module.

   • In later models (1987–1988), the buffer amplifier is integrated into the speedometer circuit board.

   • The buffered signal is sent to both the ECM (for cruise control and idle speed control) and the speedometer.

3. Speedometer Circuit Board

   • Processes the digital signal from the buffer.

   • Drives the air-core meter (speedometer needle) and controls the electronic odometer, typically operated by a DC stepper motor.

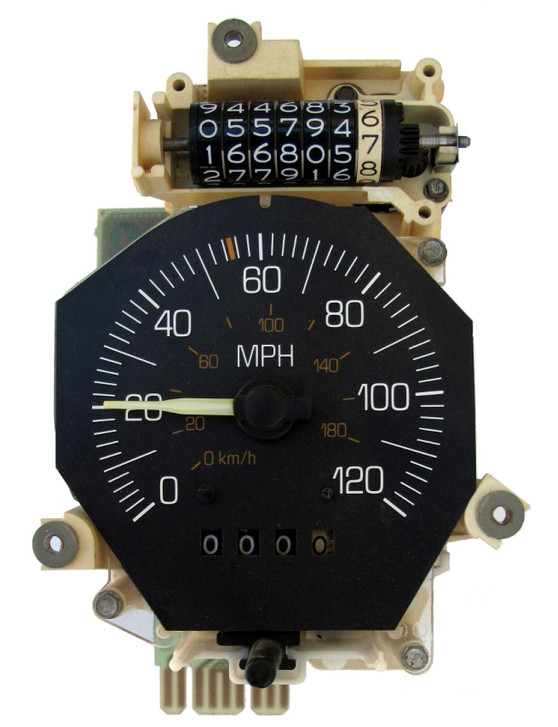

4. Speedometer Display

   • Displays the vehicle’s speed based on processed input from the buffer and circuit board.

Important Wiring Considerations

• Signal Direction: In most Fieros, the yellow wire carries the signal from the VSS to the buffer amplifier, while the purple/white wire serves as the VSS return. Always confirm with a wiring diagram for your specific year and model.

• ECM Involvement: In all EFI Fieros, the ECM receives a buffered speed signal for engine management. In some modified or carbureted swaps, this connection may be omitted.

• Integrated Buffer: Later-model Fieros (1987–1988) feature an integrated buffer amplifier on the speedometer board, eliminating the separate module used in earlier models.

Troubleshooting Guide

1. Speedometer Not Working (No Speed/Odometer Data, No ECM Trouble Codes)

• Likely a failure within the gauge cluster, buffer amplifier, or speedometer circuit board.

2. Speedometer Not Working (No Speed/Odometer Data, ECM Trouble Code for VSS)

• Indicates a failure in the VSS system: check the VSS unit, gear, wiring, and connectors.

3. Intermittent Speedometer Function

• May be caused by loose or corroded terminals at the VSS or gauge cluster. Inspect all connectors and clean as needed.

4. Speedometer Needle Jumps or Doesn't Move Smoothly

• Often a sign of a failing buffer amplifier, faulty VSS, or a defective speedometer mechanism.

5. Blown Fuse or No Power

• If the speedometer is completely inoperative, check the gauge fuse, and verify the power (VCC) and ground connections.

Final Notes

The Pontiac Fiero speedometer system shares design similarities with other GM vehicles of the late 1980s, such as the Camaro and Firebird. It blends mechanical and electronic elements, making diagnosis straightforward with a basic understanding of the system. Always consult a factory wiring diagram for your specific year, verify voltage at key terminals, and test continuity if faults are suspected.
