Trouble shooting 1991-92 Camaro Firebird Pull down goes up, then comes back down without releasing

Trouble shooting 1991-92 Camaro Firebird Pull down goes up, then comes back down without releasing

Posted by Support Staff on 28th Mar 2022

A common question we receive is:

My 91 or 92 Camaro (or Firebird) has an electric hatch release. When I hit the button the Pull down goes up, but then it goes back down..

What is causing this?

Very commonly the Pull down assembly was replaced with a Pull down assembly missing the correct parts for this function to work properly. Not all 91-92 Camaro or Firedbird had the electric release option and did not include these parts needed for this function.

There is an arm that mechanically releases the latch when the pull down is going up, when it was triggered to go up by the electric release switch on the console. Without this arm assembly, the latch never releases. Therefore when the Pull down reaches the up position, it trigger the reversing switch while the latch switch is still in the down position. This tell the Pull down to pull "down". So, the Pull down goes up, stop very briefly and goes back down and shut off.

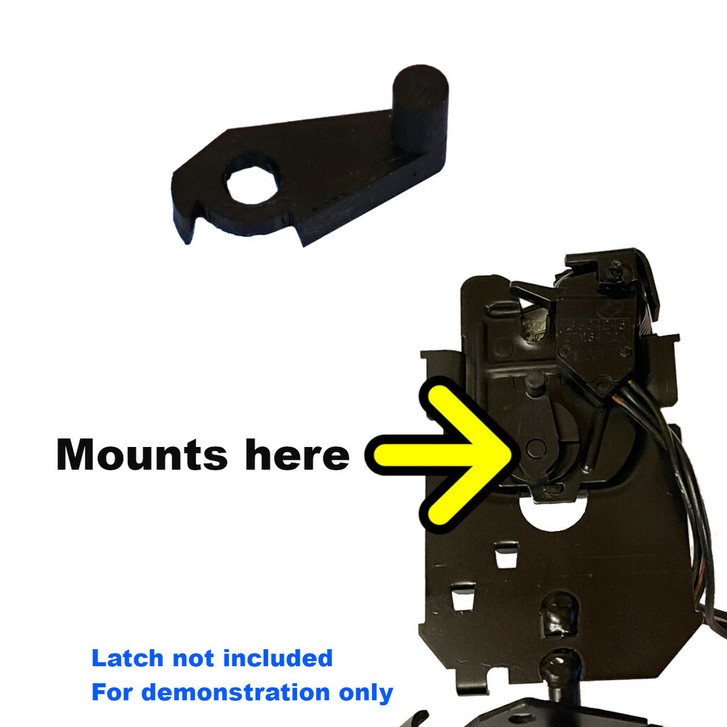

Here is an image of this part.

1991-92 Camaro Firebird Pull down Release Arm Assembly1991-92 Camaro Firebird Pull down Release Arm Assembly

Why this doesnt happen when using the key release: When the hatch is released with the key, the latch switch is deactivated. When the Pull down moves fully up, the reversing switch is triggered and the Pull down motor stops.

When closing the hatch, the hatch is put down into position to close the latch and the latch switch, this activates the pull down motor to pull down the assembly until the reversing switch is triggered, which stop the motor from running.
